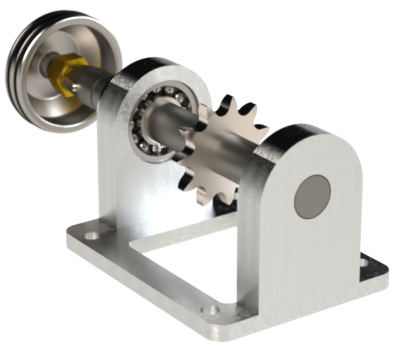

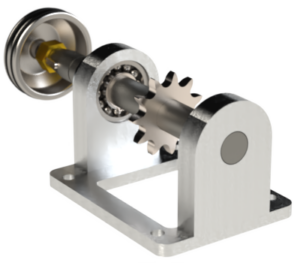

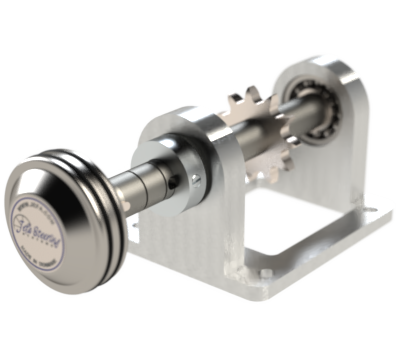

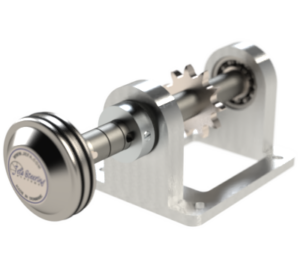

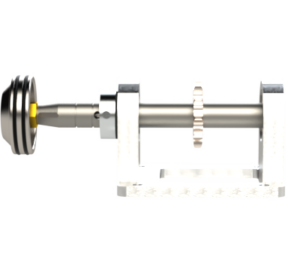

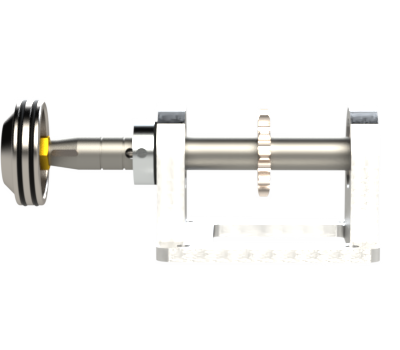

HS25 horizontal steerer

The Jefa HS25 type horizontal steerer incorporates high efficiency 25 mm ball bearings, which are double sealed and pre-lubricated for a long and maintenance free life. The stainless steel steering shaft has a diameter of 25 mm to guarantee a stiff and strong steering arrangement for wheels up until 1500 mm diameter. An additional sprocket for a second steering or autopilot drive can be welded to the shaft, please specify the number of teeth and the L2 dimension. The large brake dish provides an efficient and strong braking arrangement. The number of turns achieved with the various sprockets can be found in our sprocket table.
Brake spinner is not included and should be ordered separately.

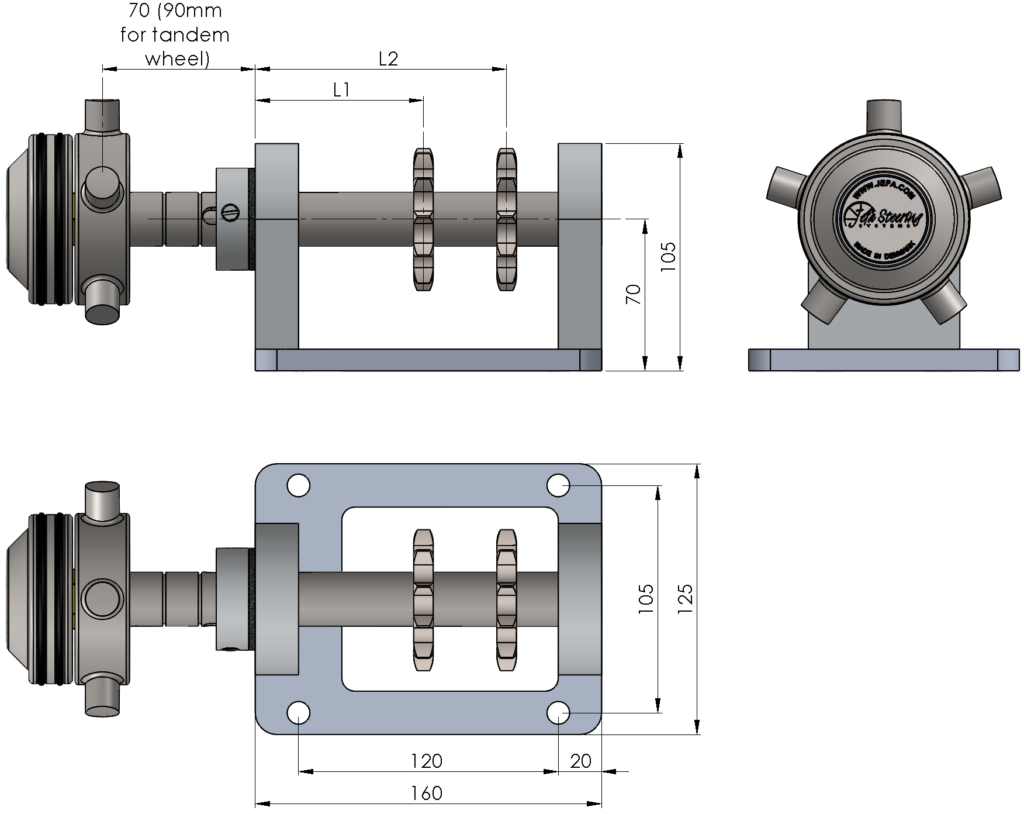

General measurements


HS25 horizontal steerers with 25 mm taper

Part No.Description
HS25-11HS25 horizontal steerer with 11 teeth 5/8" st.st. sprocket
HS25-13HS25 horizontal steerer with 13 teeth 5/8" st.st. sprocket
SP-SPCAdditional sprocket welded on shaft 11-13 teeth

Art. 11182
