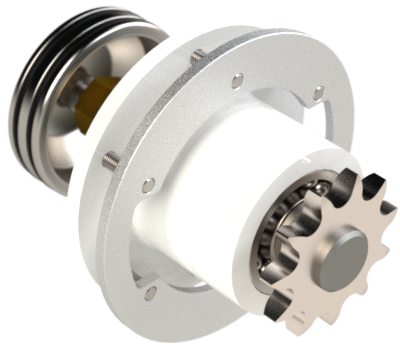

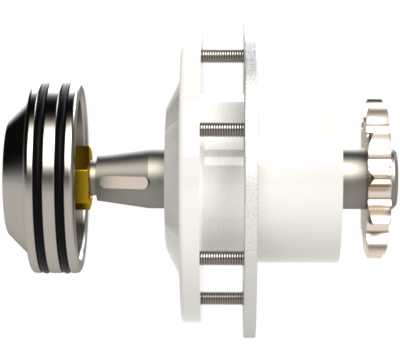

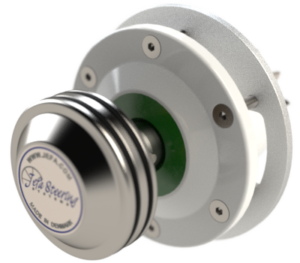

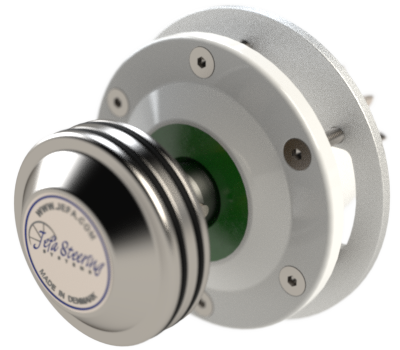

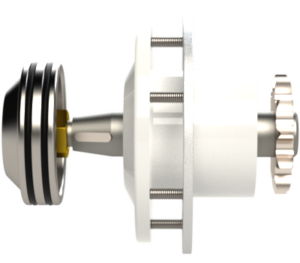

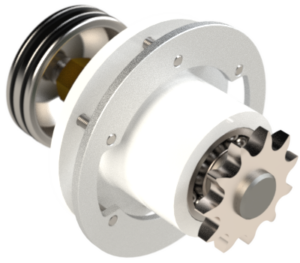

BS60 Bulkhead steerer

The Jefa BS60 type bulkhead steerer incorporates twin high efficiency 25 mm ball bearings, which are double sealed and pre-lubricated for a long and maintenance free life. The lip seal at the front is the especially developed Jefa PUR seal, which contains no metal parts for a life long problem free usage. The stainless steel steering shaft has a diameter of 25 mm to guarantee a stiff and strong steering arrangement for wheels up until 1300 mm diameter. Above 1300 mm wheel size one should add a support bearing at the aft side of the steering shaft (like the BS30 unit). The maximum wheel size accepted is 1500 mm, above 1500 mm wheel diameter the BS30 should be used. The large internal brake disk provides an efficient and strong braking arrangement. The number of turns achieved with the various sprockets can be found in our sprocket table.
Brake spinner is not included and should be ordered separately.

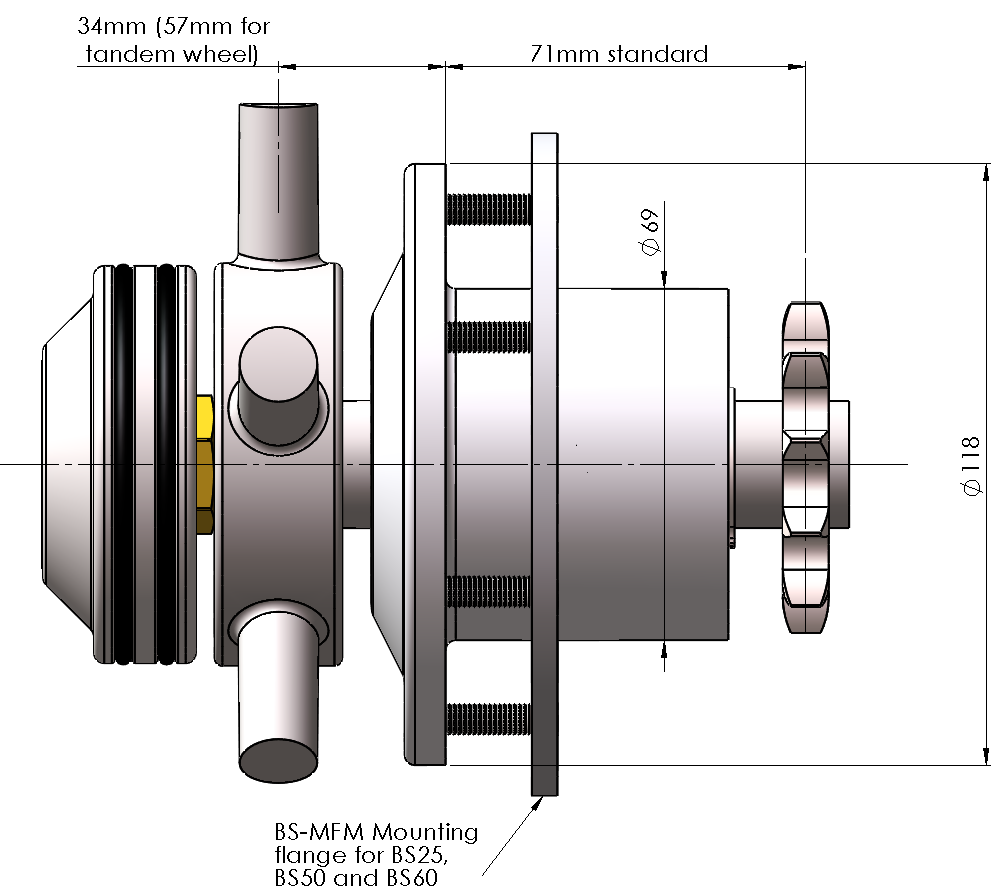

General measurements standard unit

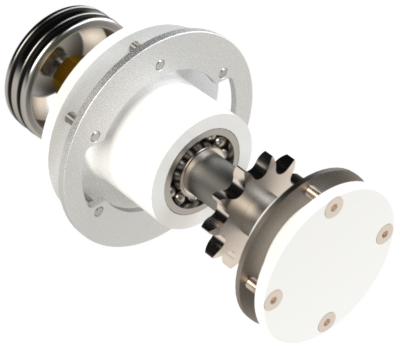

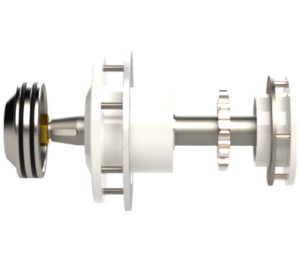

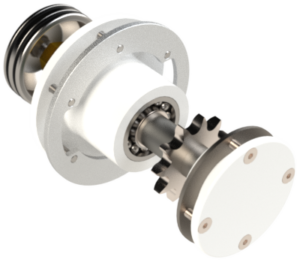

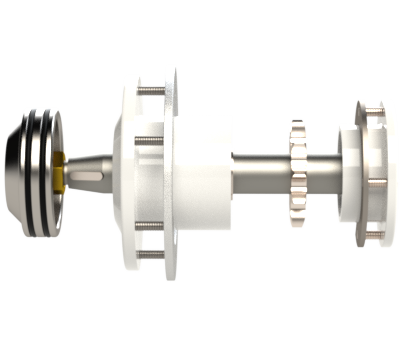

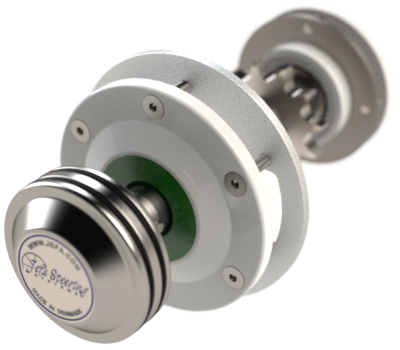

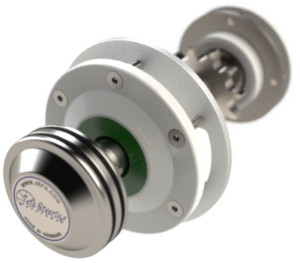

BS60 extended version with support bearing

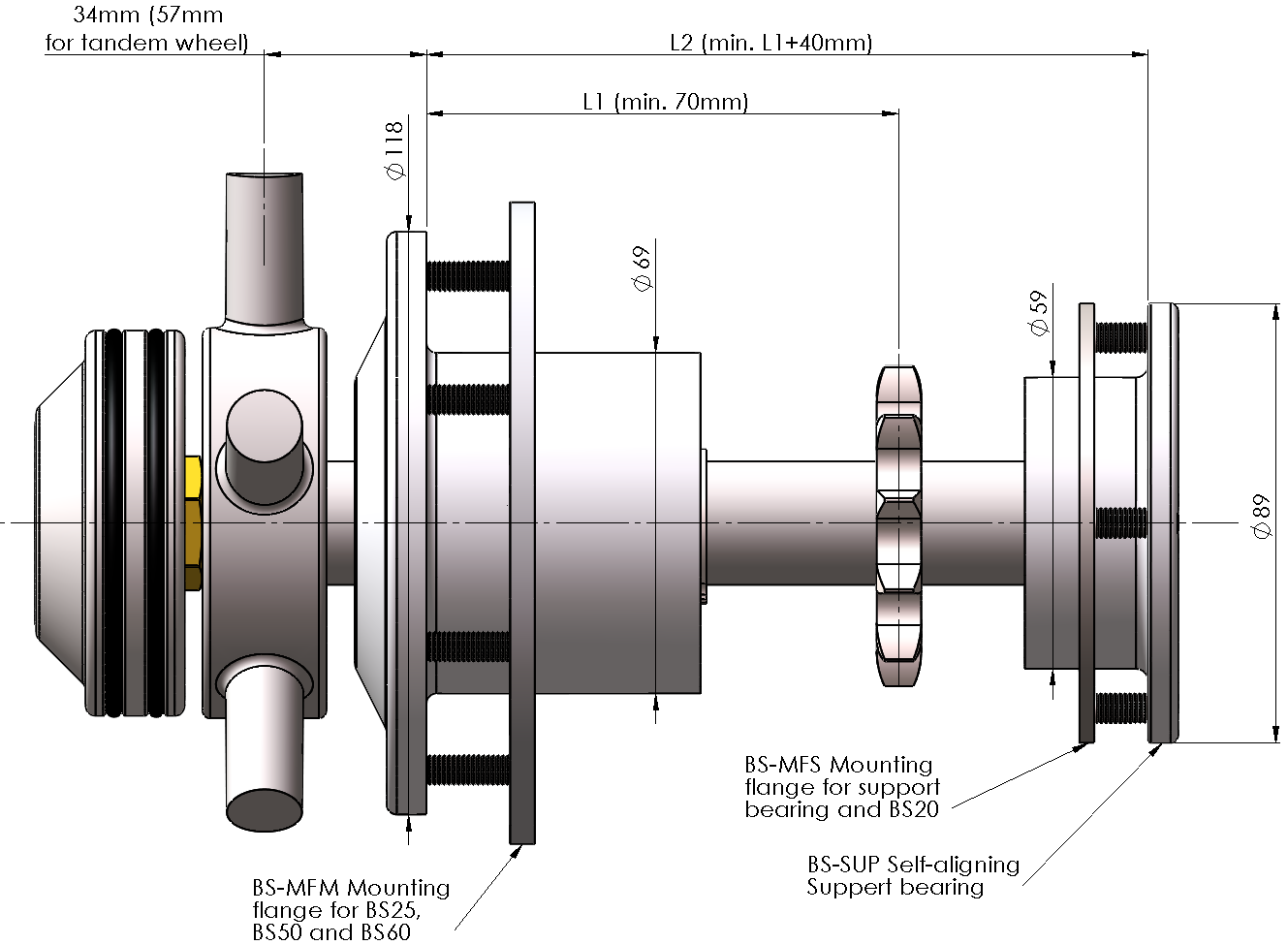

General measurements extended version with support bearing


Price overview

Part No.Description
BS60-11BS60 bulkhead steerer with 11 teeth 5/8" sprocket
BS60-13BS60 bulkhead steerer with 13 teeth 5/8" sprocket
BS60-15BS60 bulkhead steerer with 15 teeth 5/8" sprocket
BS60-17BS60 bulkhead steerer with 17 teeth 5/8" sprocket
BS-SUPSupport bearing with self-aligning bearing for bulkhead steerer
BS-MFMMounting flange for BS25, BS50 and BS60 incl. 6pcs M6x30mm screws

Art. 11173
