GRP steering wheels

GRP wheels

The JEFA GRP wheels are strong and light. A modern alternative for metal and more affordable than carbon.

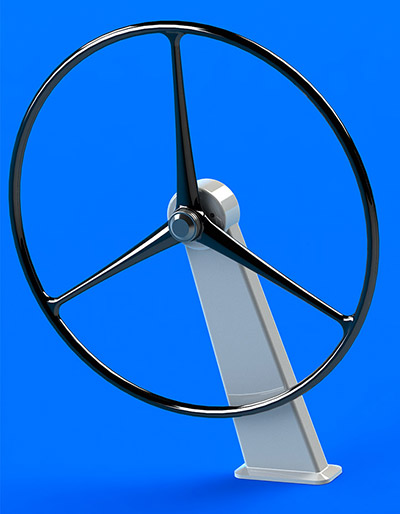

Jefa GRP wheels are produced in a one piece aluminium mold with vacuum technology and a foam core resulting in a very stiff light construction. The wheel is painted with a 2 component black or white finish. The 1000 mm version is the first wheel in this range and weighs 3,1 kgs. The rim is oval shaped, 32 x 26 mm. Other wheel dimension will follow soon.
Please click on the picture for a larger view.

DATA TABLE

GRP steering wheels

Part No.Description
WHCG0900BBlack GRP wheel 900 mm
WHCG0900WWhite GRP wheel 900 mm
WHCG1000BBlack GRP wheel 1000 mm
WHCG1000WWhite GRP wheel 1000 mm

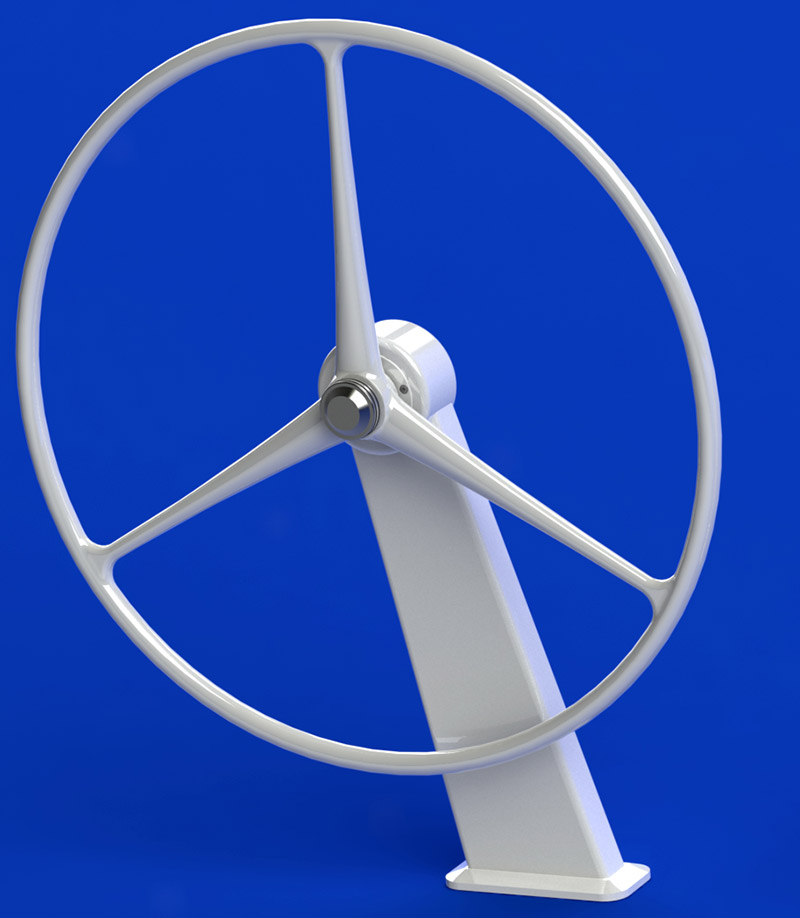

Ø1000 mm white GRP wheel

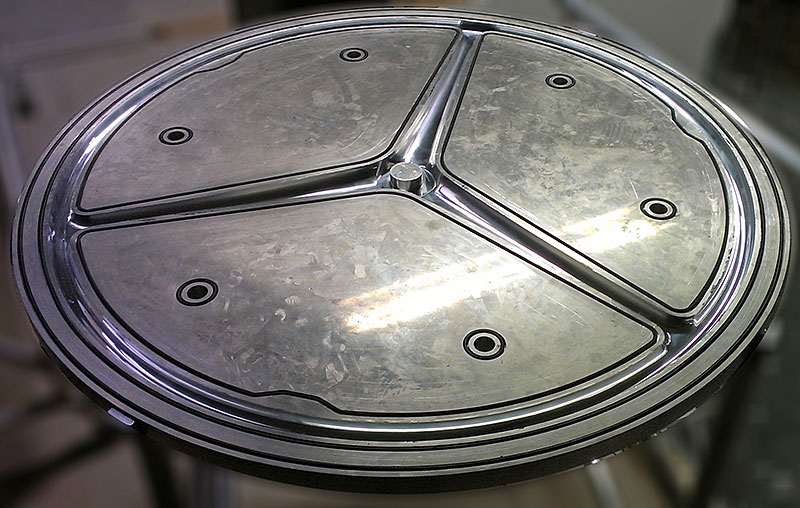

half the vacuum mold for the 1000 mm GRP wheel

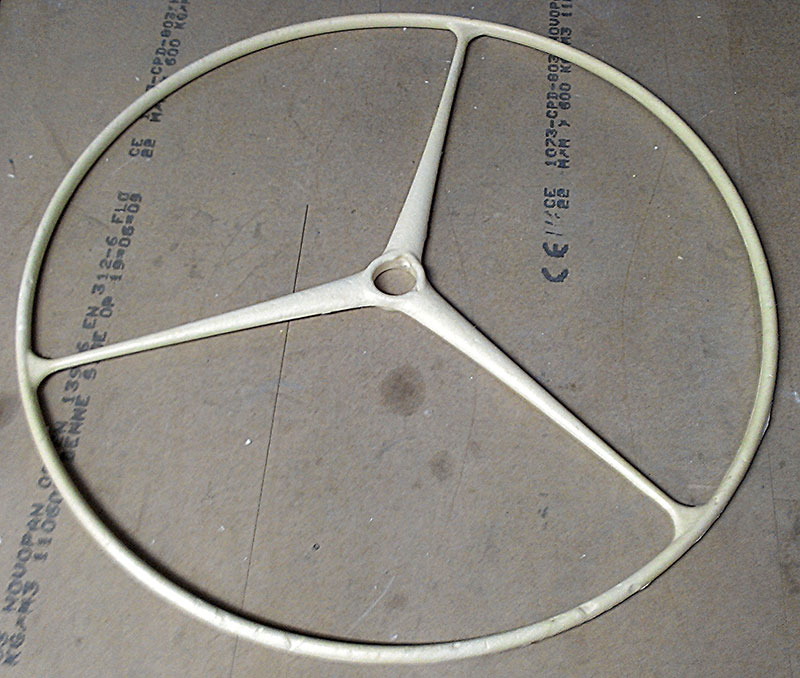

The foam core of the GRP wheel.

The Jefa steering wheel tapers and hubs

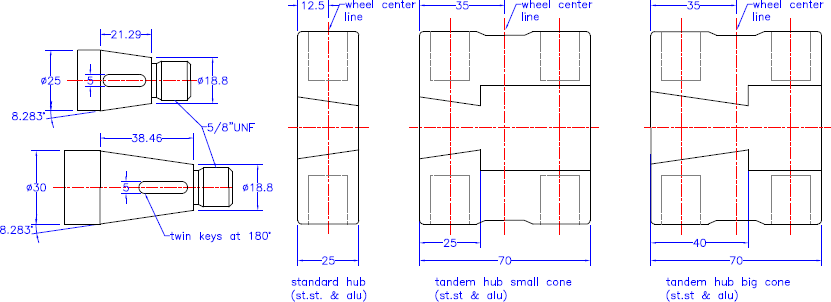

All wheels up to 1500 mm have the 25 mm steering shaft taper, from 1600 mm diameter onwards the wheels have the 30 mm taper. All pedestals have the 25 mm shaft and some bulkhead steerers (BS30) and transmission steering boxes are build with the 30 mm steering shaft. Below you will find a drawing of the tapers and the wheel hubs with the distance – start of taper to wheel centre line – .

Cone adapter for hydraulic pumps

All wheels up to 1500 mm can be fitted with an adapter cone for a hydraulic pump with the “small cone” as in below sketch.

DATA TABLE

Cone adapter

Part No.Description
WHSADAPAdapter petit cone - 8,28 degr.

Wheel protecting covers

Wheel protection covers are available for wheel from 900 to 1100 mm. They are made from neoprene, water and sun resistant and available in the color black.

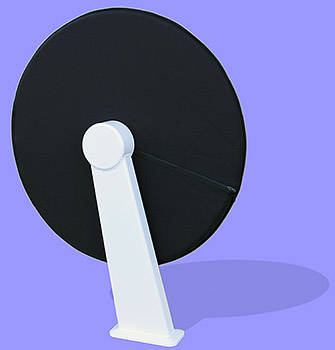

Example of a 1000 mm wheel cover. click on the picture for a larger view

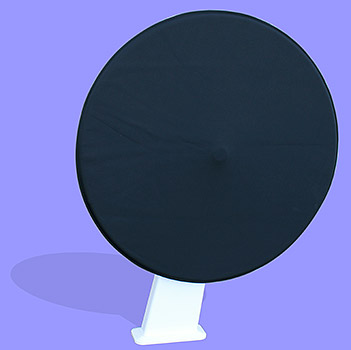

Example of a 1000 mm wheel cover. click on the picture for a larger view

DATA TABLE

Jefa Wheel Covers

Part No.Description
WC0900Wheel cover for Ø900 mm steering wheel
WC1000Wheel cover for Ø1000 mm steering wheel
WC1100Wheel cover for Ø1100 mm steering wheel

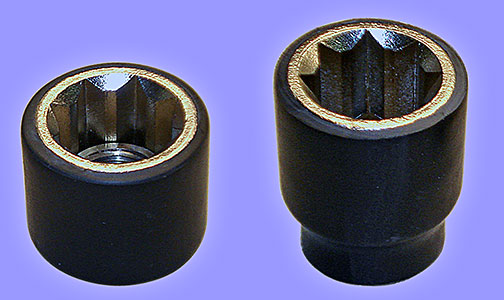

Quick release wheel nut for fast wheel removal

The quick release nut is very handy when the steering wheel obstructs the free passage in the cockpit. It replaces the standard wheel nut and can be operated with a standard winch handle. This way the steering wheel can be quickly removed when not needed.

DATA TABLE

Quick Release Steering Wheel Nuts

Part No.Description
NQT58Quick release wheel nut for tandem and carbon wheels*¹

*¹: When the steering shaft is Ø30 mm (large taper) in stead of Ø25 (small taper), the standard quick release nut NQS58 should be used.

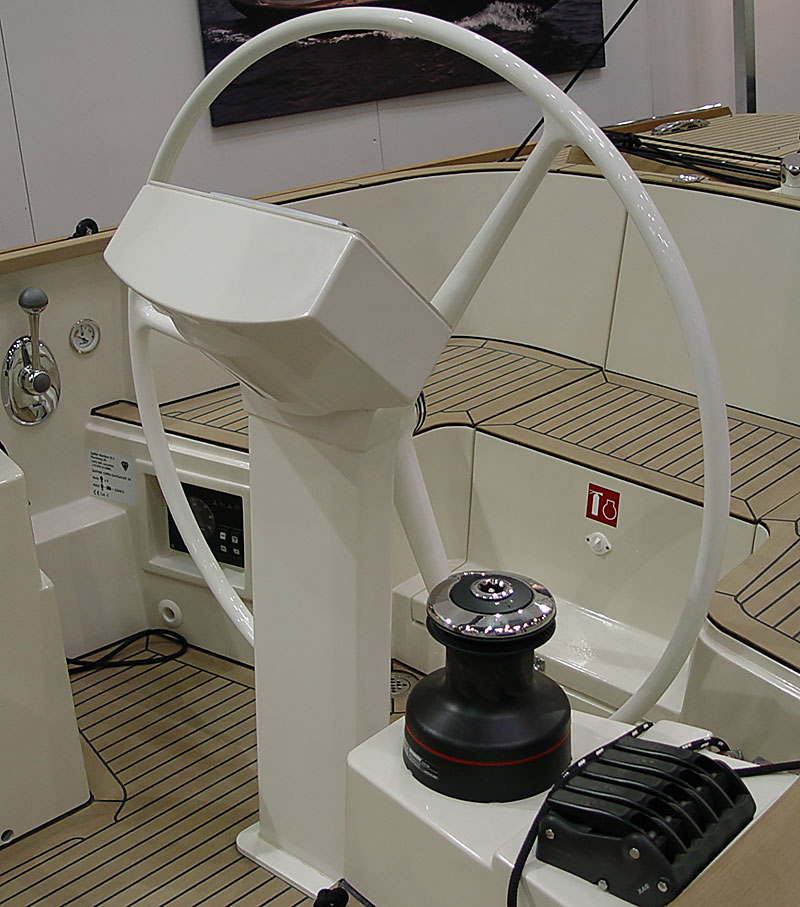

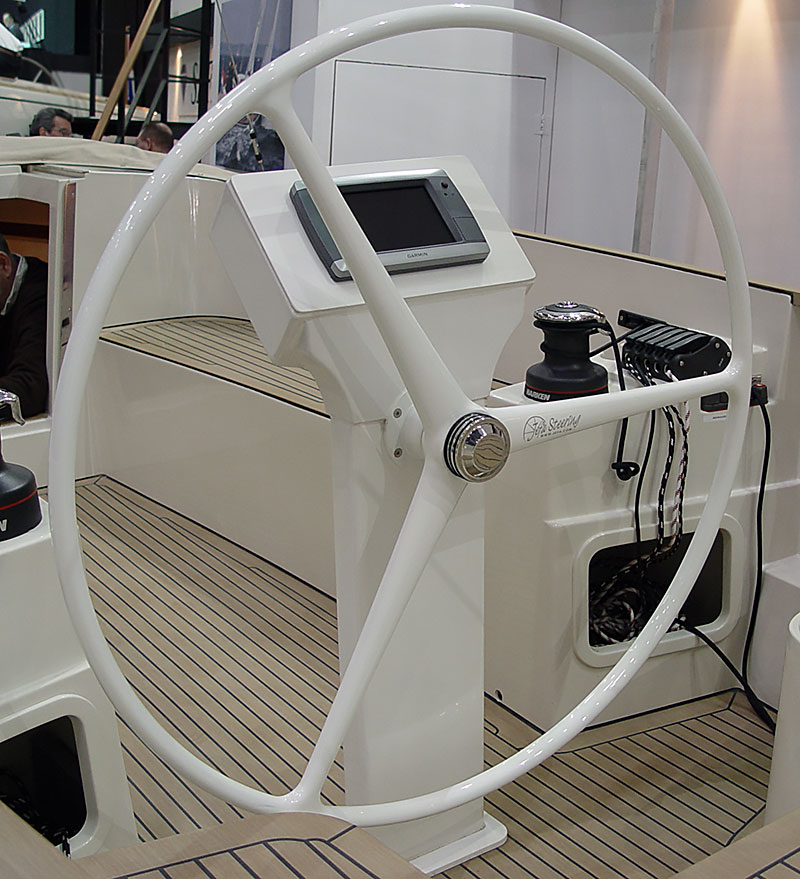

Saffier SC26 with 1000 mm GRP wheel
Saffier SC26 with 1000 mm GRP wheel
