Carbon steering wheels

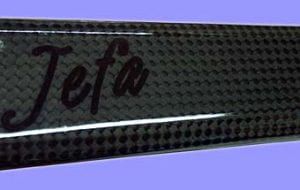

Normally carbon wheels are produced in bits (separate spokes and rim parts) and glued together to make the complete wheel. Jefa carbon wheels are produced in a very big moulding in one go using vacuum technology. The big advantage is a much lighter, stiffer and stronger construction as the carbon fibres overlap in the complete wheel without any joints. The 2,1 Kg 900 mm, the 2,3 Kg 1000 mm, the 2,6 Kg 1100 mm, the 4,5 Kg 1700 mm and the 4,8 Kg 1900 mm carbon wheels are mostly available ex stock.The Jefa carbon wheels are CE approved.
Gallery
DATA TABLE
Carbon steering wheels
| Part No. | Description |
|---|---|
| WHC0900 | Carbon wheel 900 mm |
| WHC1000 | Carbon wheel 1000 mm |
| WHC1100 | Carbon wheel 1100 mm |
| WHC1700 | Carbon wheel 1700 mm |
| WHC1900 | Carbon wheel 1900 mm |
| DISENGC | Wheel disengagement unit for carbon wheels |

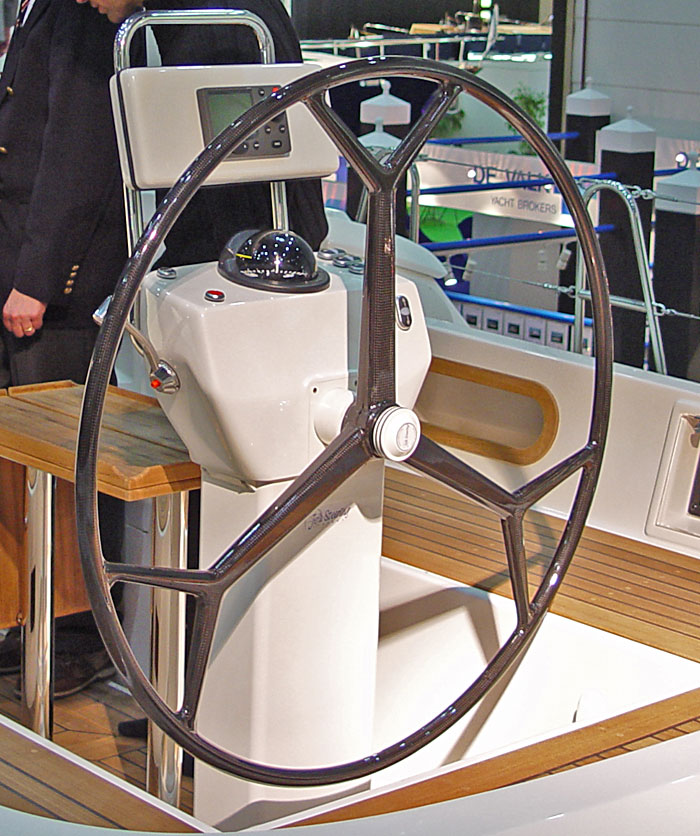

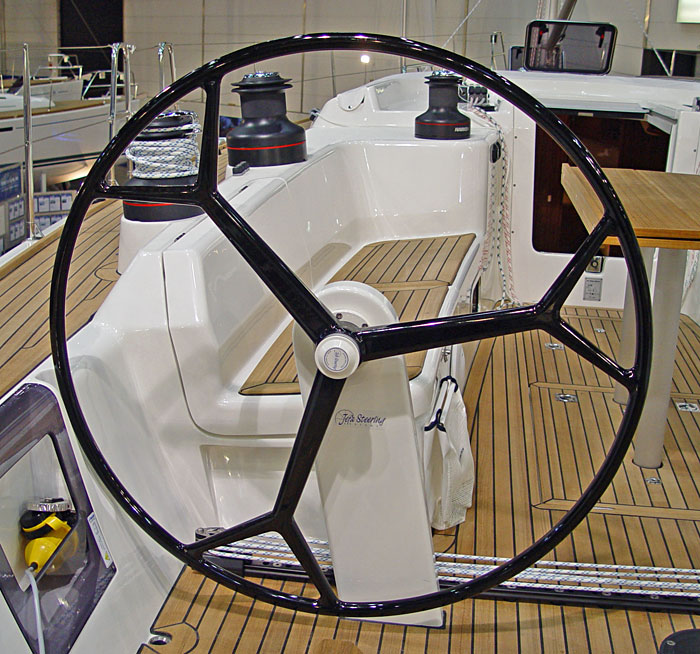

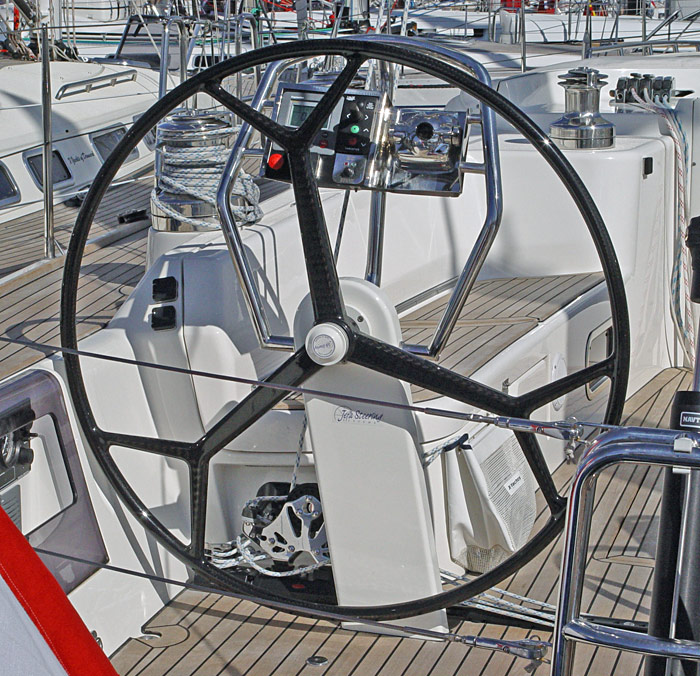

Ø1100 mm carbon wheel on X 50

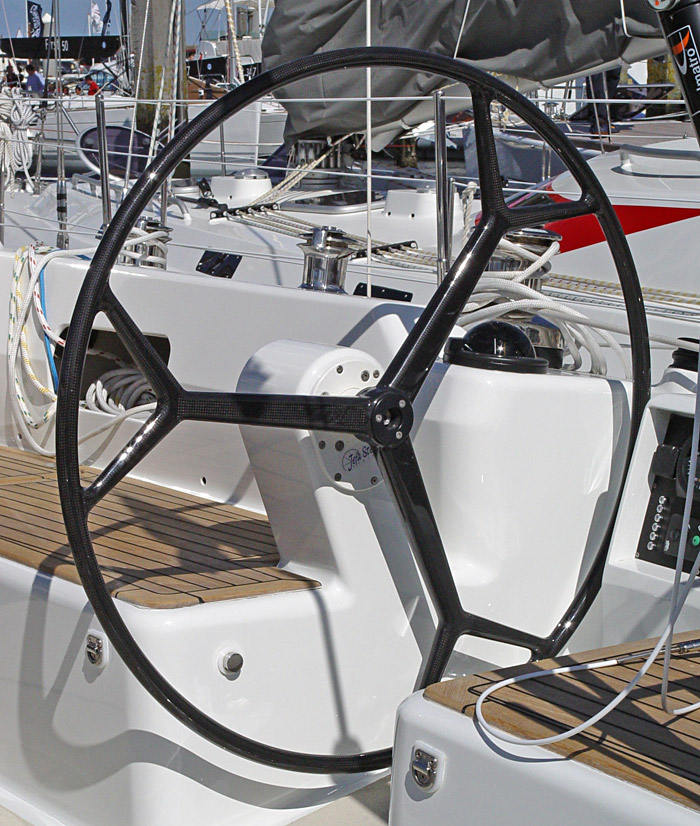

Ø1100 mm carbon wheel on Contest 50
Ø1100 mm carbon wheel on Atlantic 48
Ø1100 mm carbon wheel on X 50

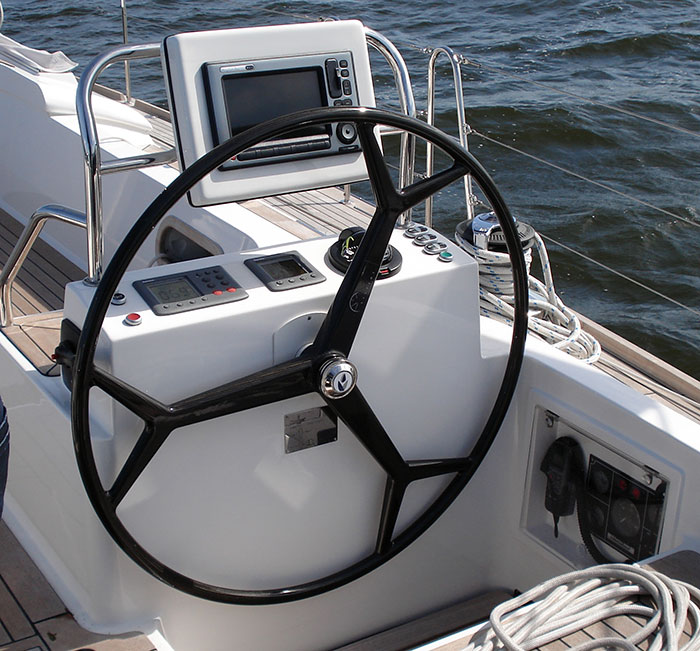

Ø1000 mm wheel on Contest 57

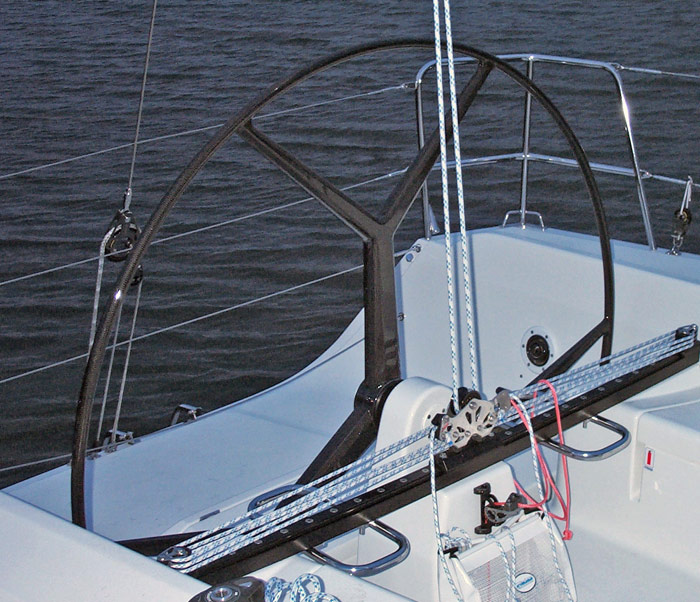

Ø1700 mm carbon wheel on IMX40
Ø1700 mm carbon wheel on Marine Sport 36

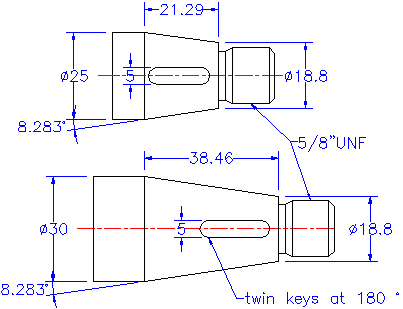

The Jefa steering wheel tapers
All wheels up to 1500 mm have the 25 mm steering shaft taper, from 1600 mm diameter onwards the wheels have the 30 mm taper. All pedestals have the 25 mm shaft and some bulkhead steerers (BS30) and transmission steering boxes are build with the 30 mm steering shaft.
Cone adapter for hydraulic pumps

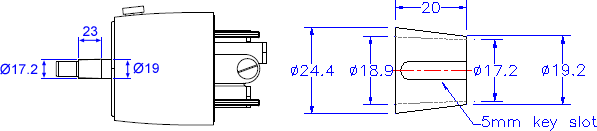

All wheels up to 1500 mm can be fitted with an adapter cone for a hydraulic pump with the “small cone” as in below sketch.
DATA TABLE
Cone adapter
| Part No. | Description |
|---|---|
| WHSADAP | Adapter petit cone - 8,28 degr. |
Wheel protecting covers
Wheel protection covers are available for wheel from 900 to 1100 mm. They are made from neoprene, water and sun resistant and available in the color black.

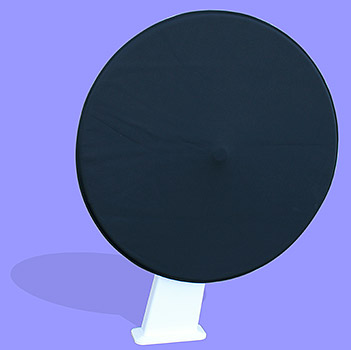

Example of a 1000 mm wheel cover. click on the picture for a larger view

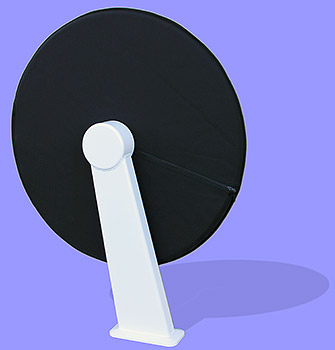

Example of a 1000 mm wheel cover. click on the picture for a larger view
DATA TABLE
Jefa Wheel Covers
| Part No. | Description |
|---|---|
| WC0900 | Wheel cover for Ø900 mm steering wheel |
| WC1000 | Wheel cover for Ø1000 mm steering wheel |
| WC1100 | Wheel cover for Ø1100 mm steering wheel |

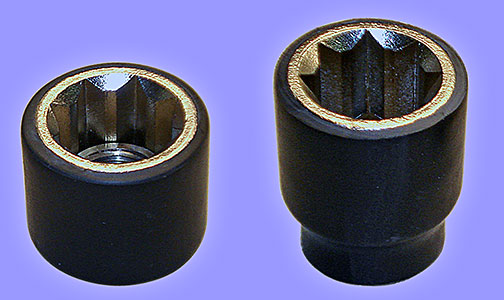

Quick release wheel nut for fast wheel removal
The quick release nut is very handy when the steering wheel obstructs the free passage in the cockpit. It replaces the standard wheel nut and can be operated with a standard winch handle. This way the steering wheel can be quickly removed when not needed.
DATA TABLE
Quick Release Steering Wheel Nuts
| Part No. | Description |
|---|---|
| NQT58 | Quick release wheel nut for tandem and carbon wheels |

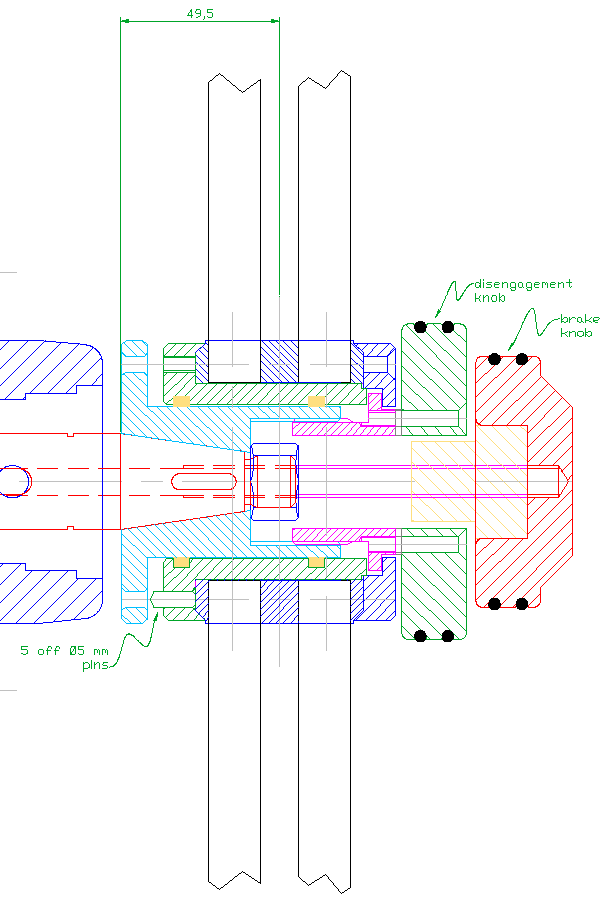

The carbon wheels can be fitted with a unit to prevent the wheel from rotating while under autopilot cruise. This steering wheel disengagement unit is only available for stainless tandem wheels and carbon wheels as the wheel hub of these type wheels is big enough to accommodate the mechanism. By rotating the black knob, the wheel is pulled backwards and 5 off pins disengage from a flange which is attached to the steering shaft. The wheel disengagement unit is a part of the steering wheel and not of the steering system. This means it can be fitted on existing steering systems. Please click on the picture for a larger view. (Shown is the stainless tandem wheel version, the carbon wheel version is similar)
Manual
[ws_download_item file="https://bsidk.com/app/uploads/sites/12/2022/02/wheel_disengager_carbon-1.pdf" text="" image="https://bsidk.com/app/uploads/sites/12/2022/02/wdu-carbon.expl_.gif"]
[ws_download_item file="" text="" image=""]
DATA TABLE
Tandem wheel disengagement unit
| Part No. | Description |
|---|---|
| DISENGC | Wheel disengagement unit for carbon wheels |
Art. 10704
