Autopilot tiller levers

Tiller levers for rack and pinion steering and autopilot drives

The Jefa tiller levers are not casted but made from high strength aluminium AlMgSi1. As a tiller lever has to endure high impact loadings from for instance rudder stops, the material should not be easy breakable like cast aluminium. The Jefa tiller levers are available in three boss sizes depending on the rudder stock diameter. All Jefa tiller levers are standard equipped with an autopilot pick up hole at 250 mm centres and tap holes for the rudder feedback unit. A great help in specifying tiller levers is out tiller lever specification form.

DATA TABLE

Jefa Tiller Levers

Part No.Description
TLL035Tiller lever c/c250 mm, incl. fixed bore 35 mm "light duty"
TLL040Tiller lever c/c250 mm, incl. fixed bore 40 mm "light duty"
TLL050Tiller lever c/c250 mm, incl. fixed bore 50 mm "light duty"
TLJ050Tiller lever c/c250 mm, incl bore, max. bore 50 mm
TLJ075Tiller lever c/c250 mm, incl bore, max. bore 75 mm
TLJ100Tiller lever c/c250 mm, incl bore, max. bore 100 mm
TLJ125Tiller lever c/c250 mm, incl bore, max. bore 125 mm
TLH125Heavy duty tiller lever c/c307 mm, incl bore, max. bore 125 mm
TLH200Heavy duty tiller lever c/c307 mm, incl bore, max. bore 200 mm
TLJPIN1616 mm tiller lever pin
TLJPIN2222 mm tiller lever pin
TLJPIN585/8" mm tiller lever pin for other steering systems
TLJPIN-DTLJPIN set for twin mount draglink
TLAUTOsurcharge for additional autopilot arm connected to tiller cap
TLTWISTsurcharge for twisted tiller tail
TLJ-EXTSurcharge for extended tiller lever
TLJCONsurcharge for conical bore
TLJadaptorTLJ Adaptor Ø12,7xØ16mm (raymarine drive unit)
TLHLEVERExtra heavy duty lever for autopilot

Manual

[ws_download_item file="https://bsidk.com/app/uploads/sites/12/2022/02/Tillerarm_spec_form_v2-2-2.pdf" text="" image="https://bsidk.com/app/uploads/sites/12/2022/02/tillerarm-spec-2.gif"]

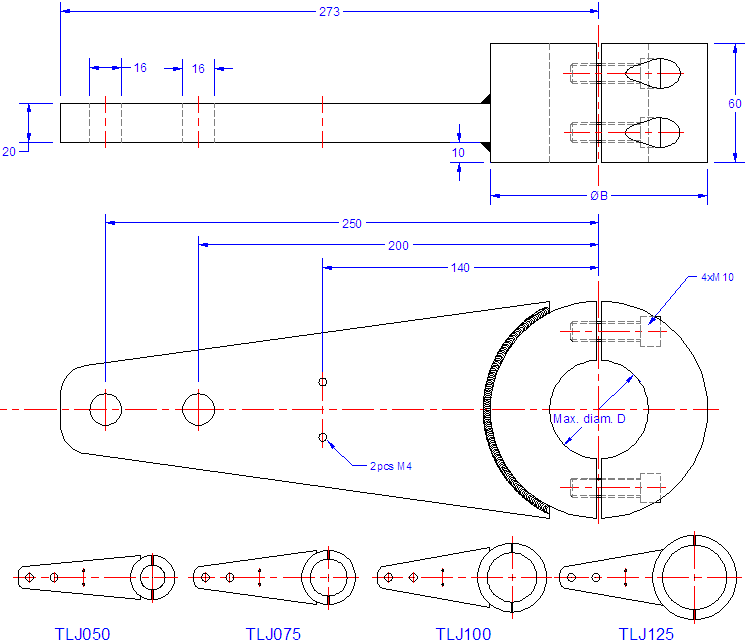

Jefa standard tiller lever dimensions

DATA TABLE

Jefa Tiller Dimensions

Part No.Max. diam. DØB
TLJ0505090
TLJ07575110
TLJ100100140
TLJ125125170

Jefa heavy duty tiller lever dimensions

DATA TABLE

Jefa Tiller Dimensions

Part No.Max. diam. DØB
TLH125125170
TLH200200250

Tiller tails:

Multiple tails can be connected to the tiller boss, at the same side or at the cap side.
example of a tiller arm which combines the steering tail and autopilot tail on one central boss.

Art. 11654
