Aluminium steering wheels

Single and tandem spoke aluminium wheels

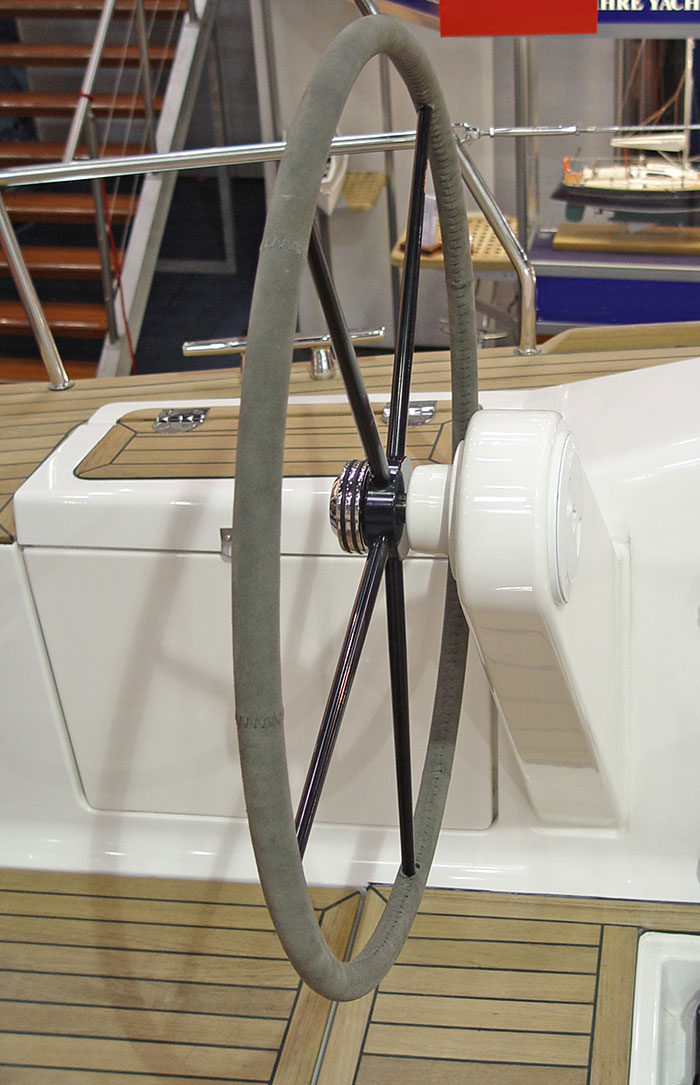

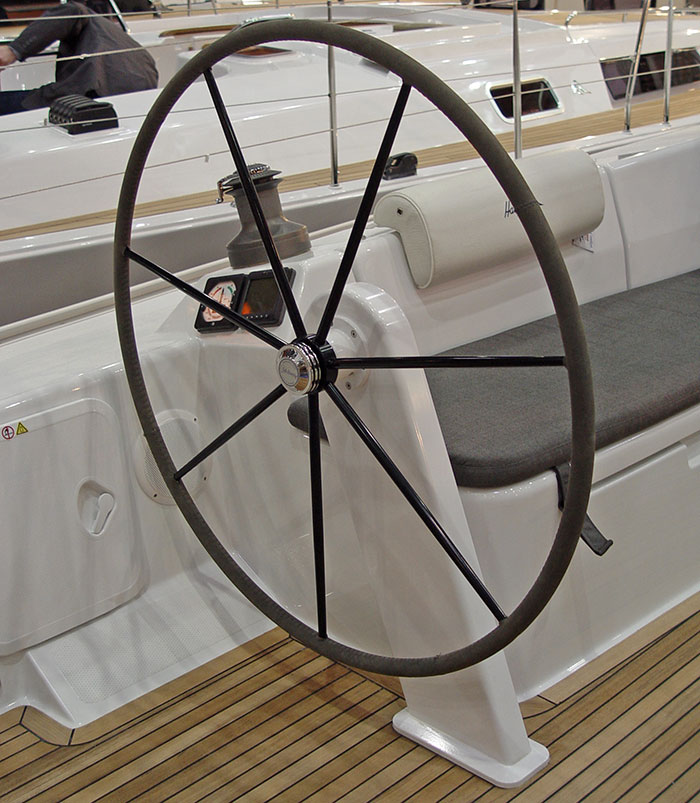

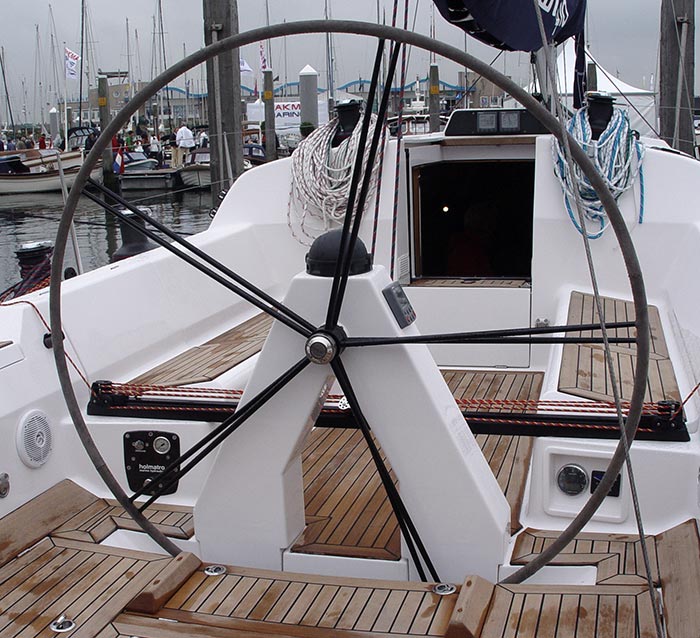

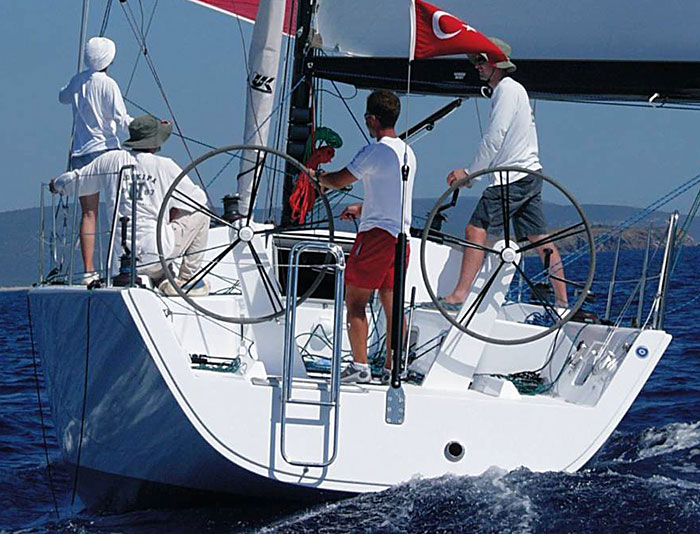

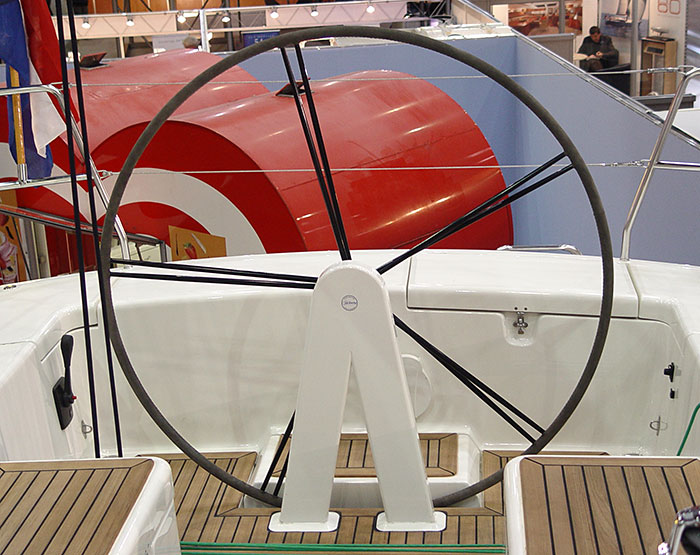

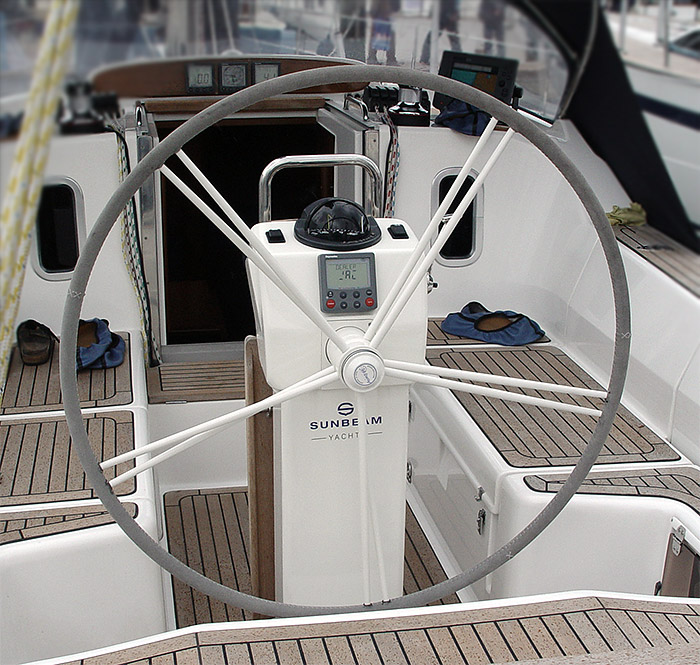

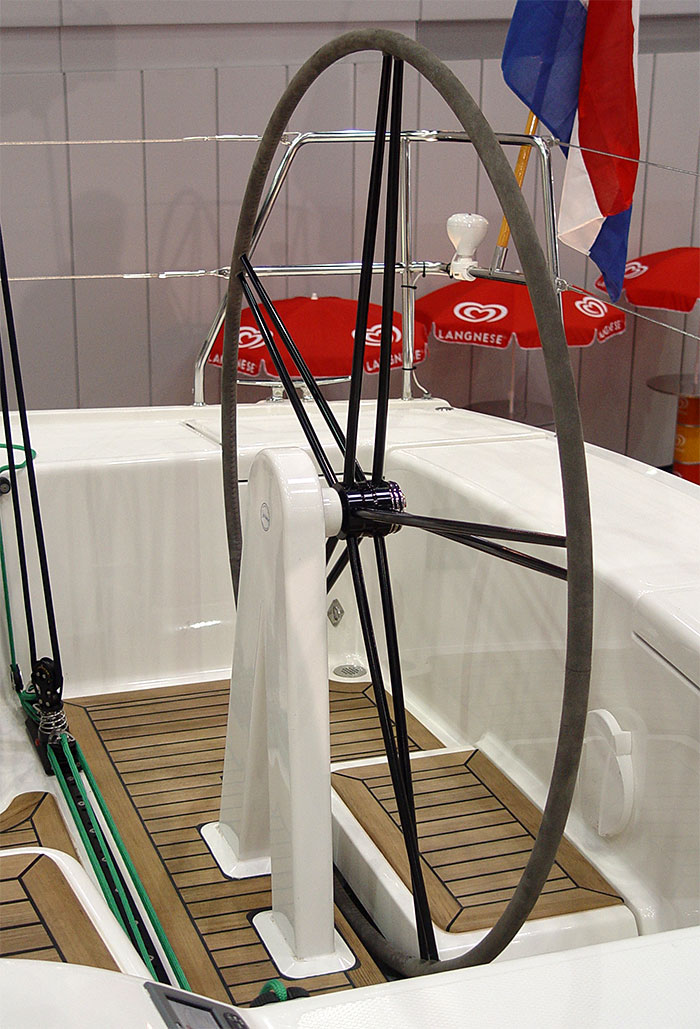

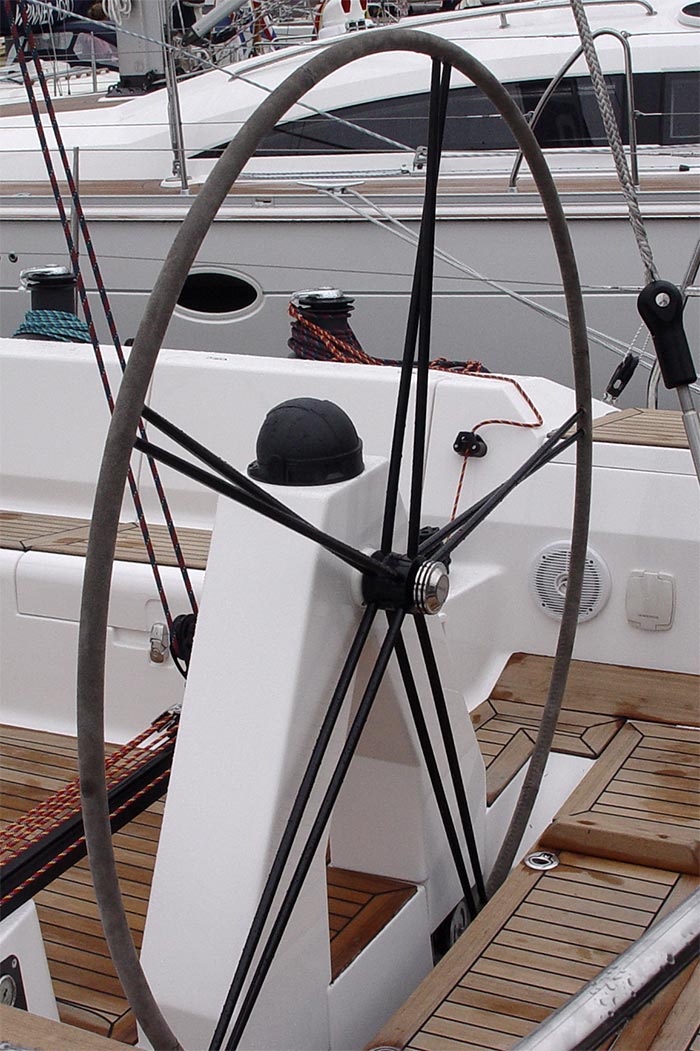

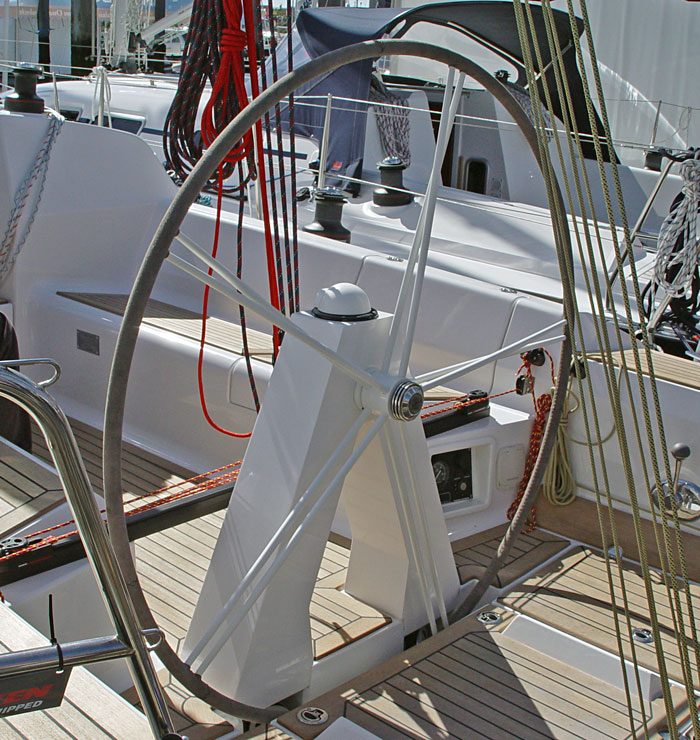

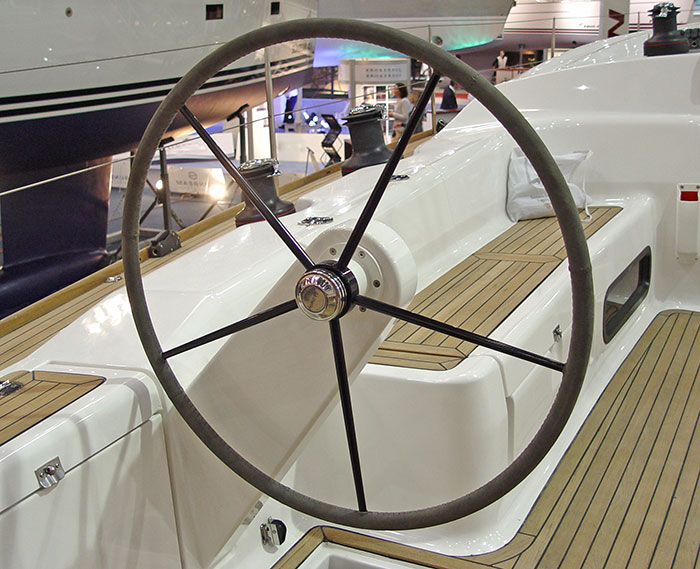

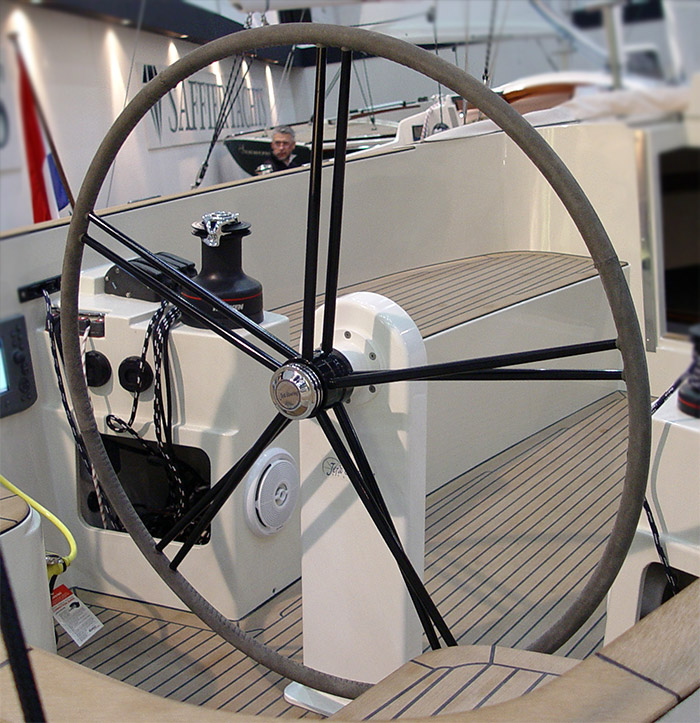

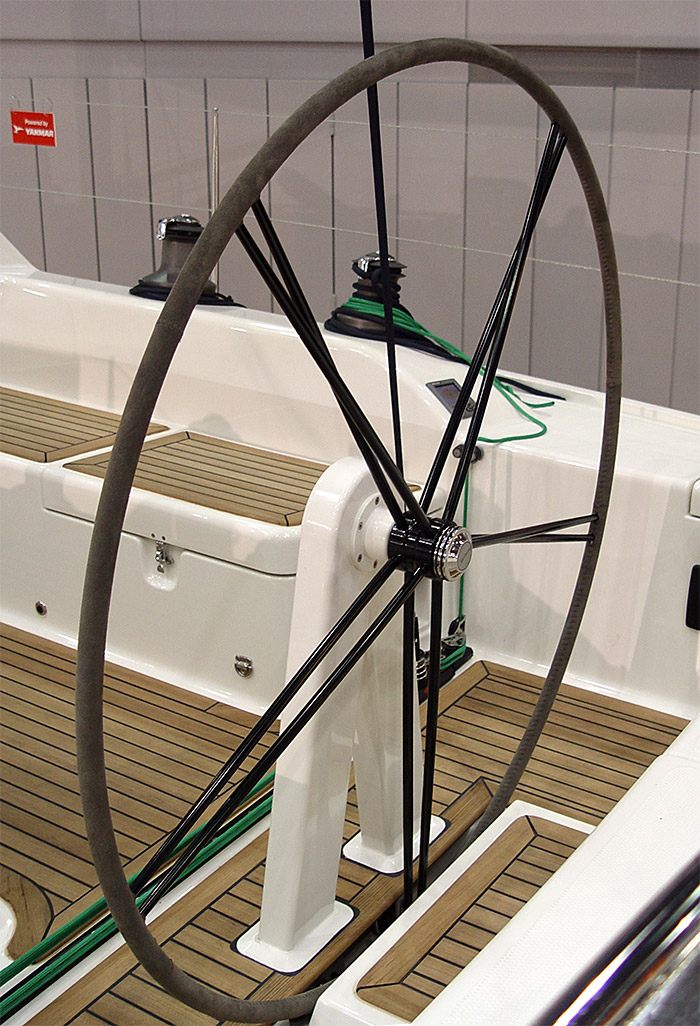

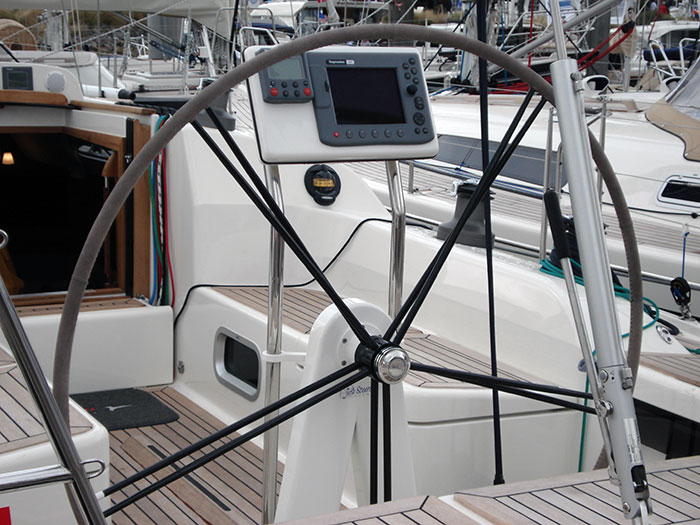

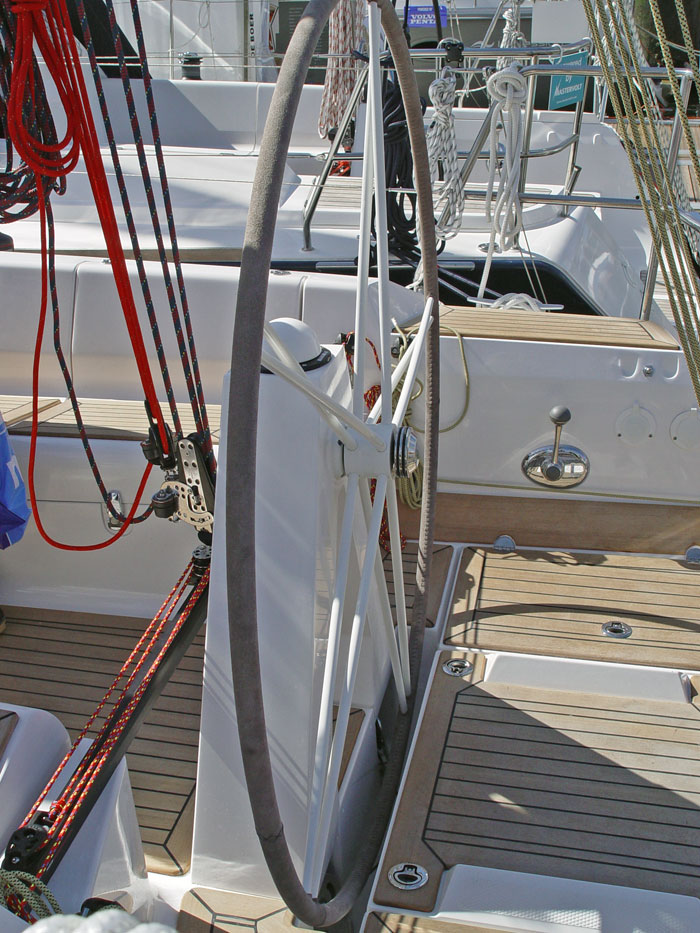

The Jefa aluminium 6082 steering wheels are unique in the world as the wheels are produced without any welding at all. The hollow spokes are threaded at the hub side and screwed into the hub. At the tapered end the spokes are threaded inside and a through bolt from the outside of the rim is screwed into the threaded spoke. The lack of welding (which dramatically decreases the strength of aluminium) and the unique construction results in an ultra light weight and extremely strong steering wheel with a weight of nearly half on an equivalent stainless steel wheel. As result of the through bolt construction the Jefa aluminium wheels are only available with a fitted leather cover. The wheels in the size from 700 mm up to 1000 mm diameter are available as single spoke version and the wheels from 1100 mm up to 1800 mm are available as tandem spoke version (see pictures). All aluminium wheels come with a 25 mm diameter rim, with the hide cover fitted resulting in a total rim diameter of 29 mm. The available finishes are either white or black powder coating.

Gallery

DATA TABLE

Aluminium single spoke steering wheels with leather cover, white or black powder coated

Part No.	Description
WHS0700A	Single spoke Aluminium wheel 700 mm with leather cover
WHS0800A	Single spoke Aluminium wheel 800 mm with leather cover
WHS0900A	Single spoke Aluminium wheel 900 mm with leather cover
WHS1000A	Single spoke Aluminium wheel 1000 mm with leather cover

Print / Save as PDF

DATA TABLE

Aluminium tandem spoke steering wheels with leather cover, white or black powder coated

Part No.	Description
WHT1000A	Tandem spoke Aluminium wheel 1000 mm with leather cover
WHT1100A	Tandem spoke Aluminium wheel 1100 mm with leather cover
WHT1200A	Tandem spoke Aluminium wheel 1200 mm with leather cover
WHT1300A	Tandem spoke Aluminium wheel 1300 mm with leather cover
WHT1400A	Tandem spoke Aluminium wheel 1400 mm with leather cover
WHT1500A	Tandem spoke Aluminium wheel 1500 mm with leather cover
WHT1600A	Tandem spoke Aluminium wheel 1600 mm with leather cover
WHT1700A	Tandem spoke Aluminium wheel 1700 mm with leather cover
WHT1800A	Tandem spoke Aluminium wheel 1800 mm with leather cover

Print / Save as PDF

The Jefa steering wheel tapers and hubs

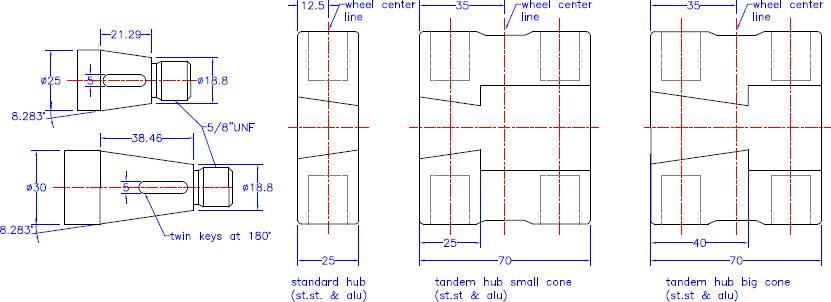

All wheels up to 1500 mm have the 25 mm steering shaft taper, from 1600 mm diameter onwards the wheels have the 30 mm taper. All pedestals have the 25 mm shaft and some bulkhead steerers (BS30) and transmission steering boxes are build with the 30 mm steering shaft. Below you will find a drawing of the tapers and the wheel hubs with the distance – start of taper to wheel centre line – .

Cone adapter for hydraulic pumps

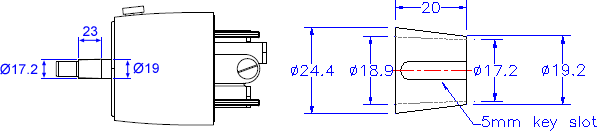

All wheels up to 1500 mm can be fitted with an adapter cone for a hydraulic pump with the “small cone” as in below sketch.

DATA TABLE

Cone adapter

Part No.	Description
WHSADAP	Adapter petit cone - 8,28 degr.

Print / Save as PDF

Wheel protecting covers

Wheel protection covers are available for wheel from 900 to 1100 mm. They are made from neoprene, water and sun resistant and available in the color black.

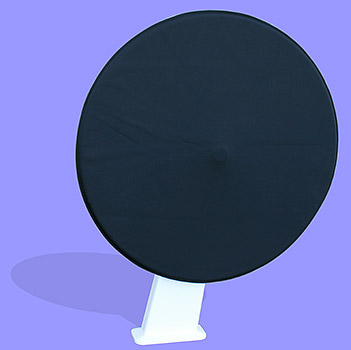

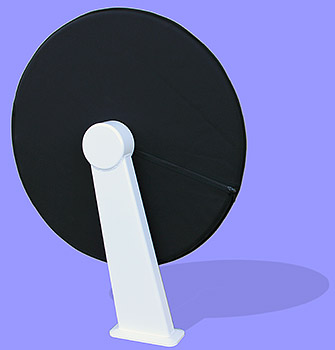

Example of a 1000 mm wheel cover. click on the picture for a larger view

DATA TABLE

Jefa Wheel Covers

Part No.	Description
WC0900	Wheel cover for Ø900 mm steering wheel
WC1000	Wheel cover for Ø1000 mm steering wheel
WC1100	Wheel cover for Ø1100 mm steering wheel

Print / Save as PDF

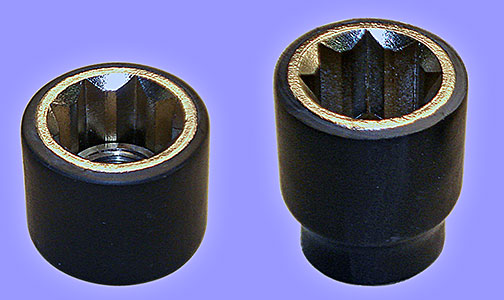

Quick release wheel nut for fast wheel removal

The quick release nut is very handy when the steering wheel obstructs the free passage in the cockpit. It replaces the standard wheel nut and can be operated with a standard winch handle. This way the steering wheel can be quickly removed when not needed.
